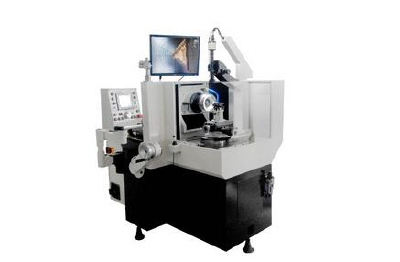

BT-150M is a two axis CNC tool grinder, which is composed of a grinding wheel swing axis (X axis), the tool in the horizontal plane rotation axis (C axis), workpiece axis (Y axis) four shaft. The X axis and C axis can be controlled by the programmable controller (PLC) to realize automatic operation, the machine tool is suitable for the production of large quantities of alloy blade, PCD blade and CBN blade. As long as the completion of the switch on the automatic completion of grinding. Uniform grinding wheel wear, the system can automatically compensate for a long time to maintain automated production.

Technical breakthrough point

1, turret rotation can be set by the program automatically run, press a button to switch to the manual state, and the general manual device no difference. And directly related to the grinding efficiency, accuracy and smoothness of the feed motion by the manual through the pneumatic feeding device to achieve, which is the "automation" of the appropriate use of.

2, the optimization of the vertical axis: the fixture integrated in the table of the vertical axis will rarely adjusted, greatly enhanced the stability and the rigidity of equipment.
